Mô tả
| Sản phẩm | Bo mạch chủ |
| Tên Hãng | MSI |

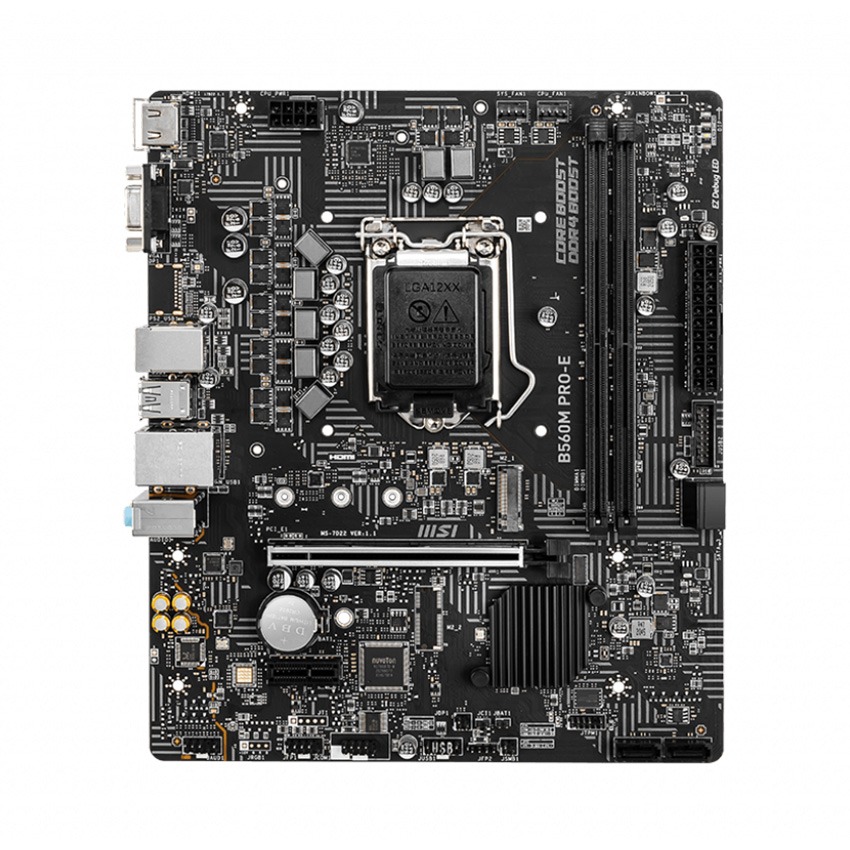

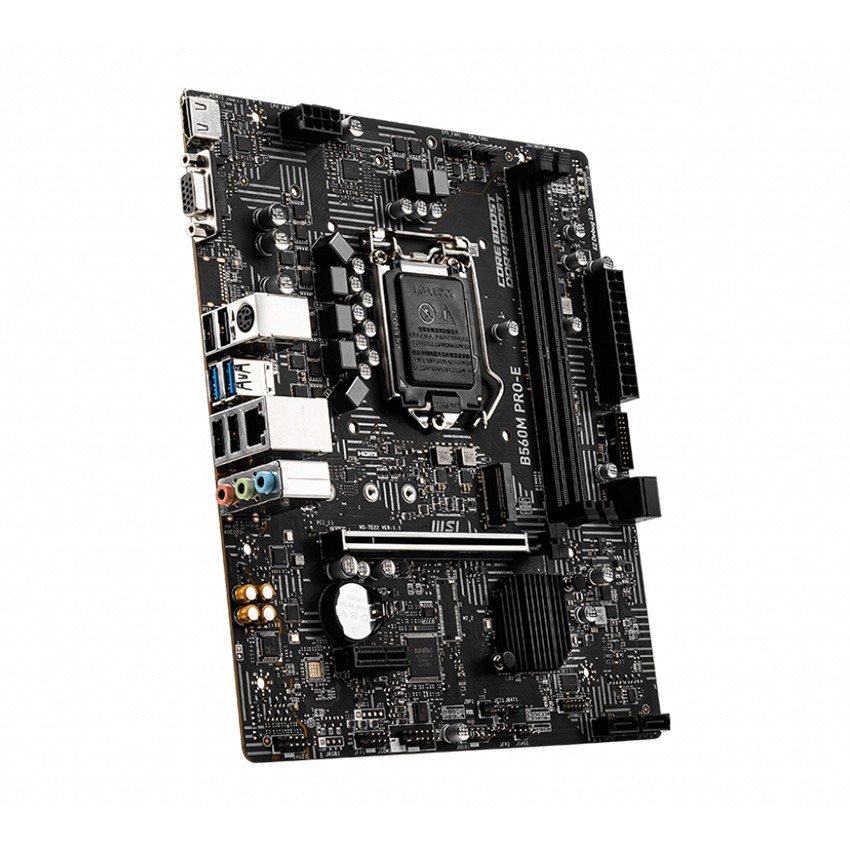

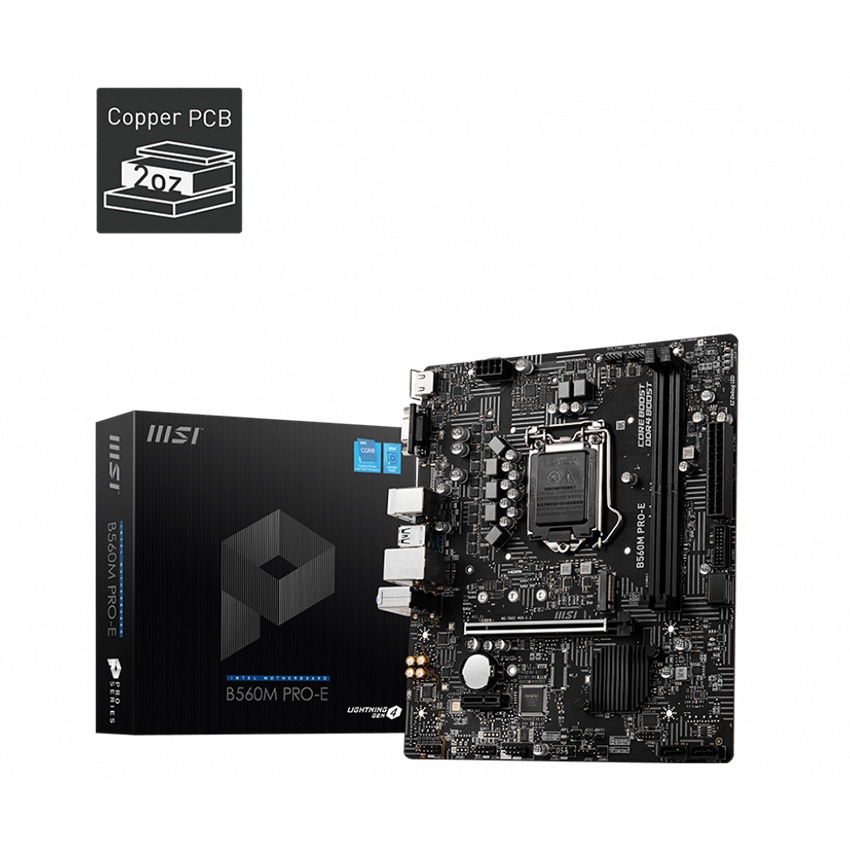

| Model | B560M PRO-E |
| CPU hỗ trợ | Intel |
| Chipset | B560 |
| RAM hỗ trợ | 2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Khe cắm mở rộng | 1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH) |
| Ổ cứng hỗ trợ | 4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices |
| Cổng kết nối (Internal) | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector |

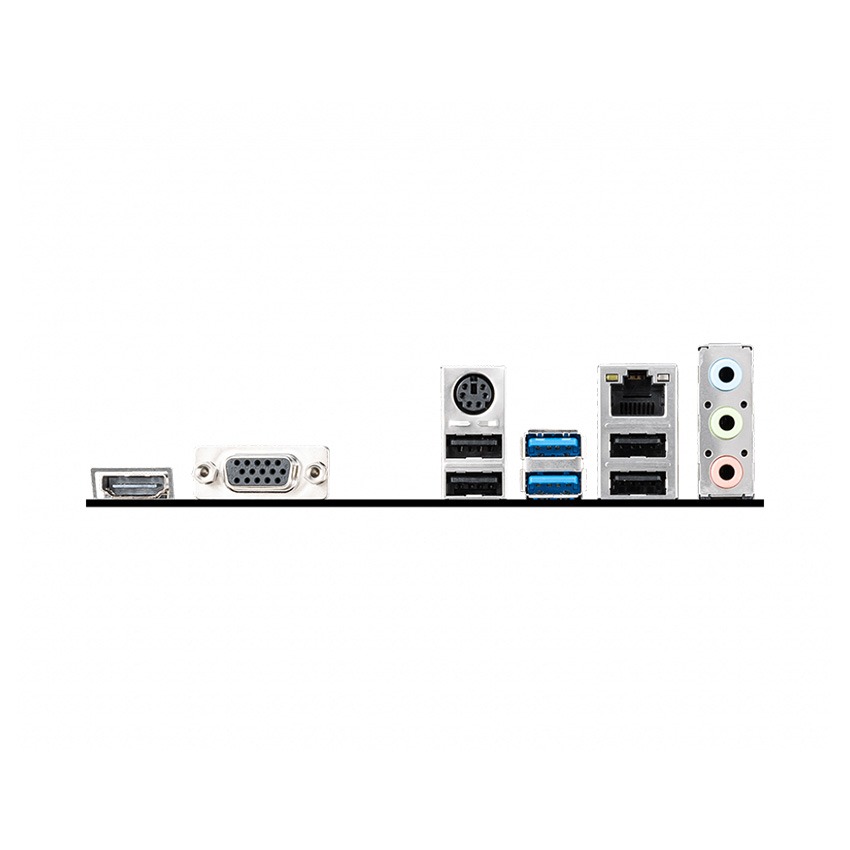

| Cổng kết nối (Back Panel) | 1 x HDMI 1 x PS2 1 x LAN port 1 x Audio connector 4 x USB 2.0 1 x VGA 2 x USB 3.2 Gen 1 5Gbps Type A |
| LAN / Wireless | 1x Intel® I219V 1Gbps LAN controller |
| Kích cỡ | mATX Form Factor 9.29 in. x 7.95 in. (23.6 cm x 20.2 cm) |
